MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF	CURRENT	TORQUE
	OPERATING RANGE	NOMINAL	rpm	A	rpm	A	g-cm	mN-m	W	%	A	g-cm	mN-m

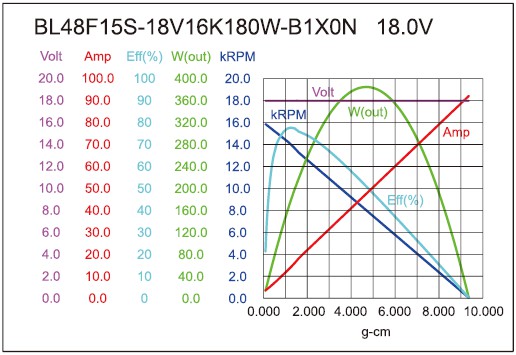

BL48F15S-18V16K180W-B1X0N	14.4-21.6V	18.0V CONSTANT	16150	2.13	13966	14.37	1280	125.49	183.73	78	92.37	9380	920

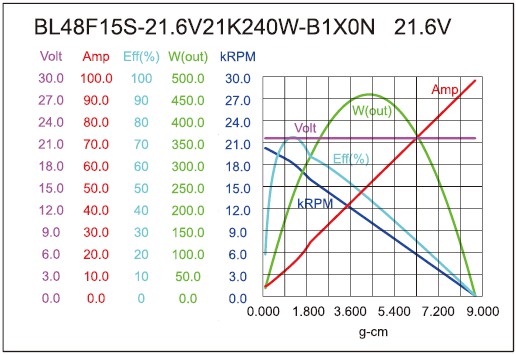

BL48F15S-21.6V21K240W-B1X0N	14.4-21.6V	21.6V CONSTANT	20500	2.40	18051	15.42	1300	127.45	240.99	73	98.59	8730	860

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。

回上頁下載PDF

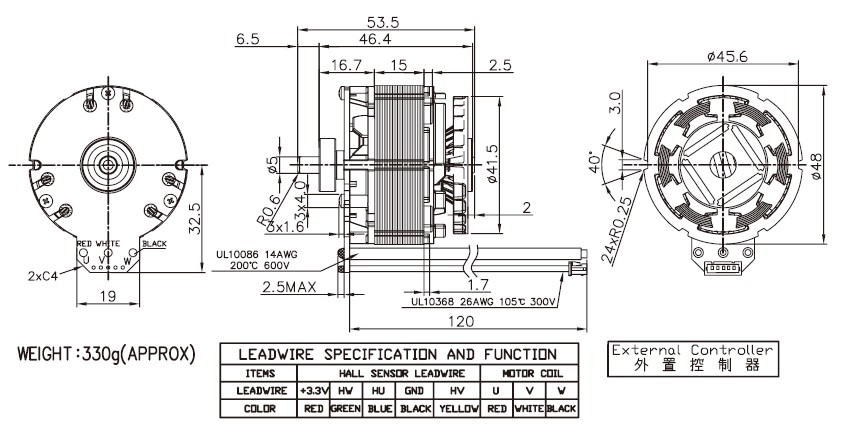

BL48F15無刷電機 /圓型鐵殼
