BLDC5032無刷電機 /圓型鐵殼
用途：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

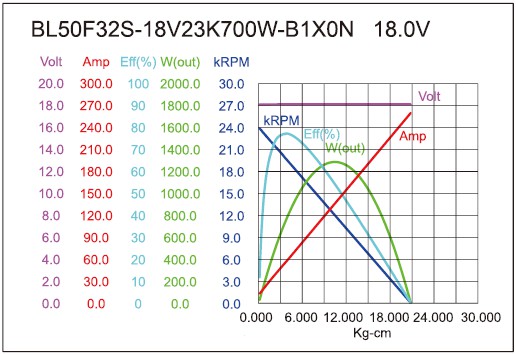

| BL50F32S-18V23K700W-B1X0N | 18.0-43.2V | 18.0V CONSTANT | 23000 | 9.40 | 19960 | 54 | 3600 | 352.94 | 742 | 78 | 260 | 2090 | 204.90 |

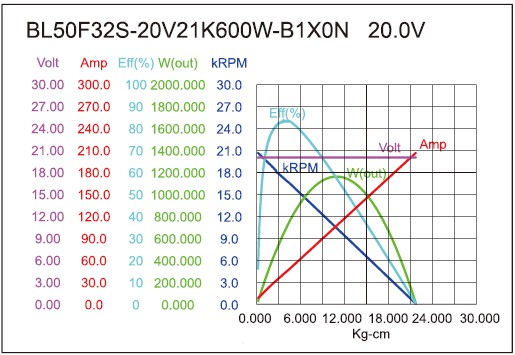

| BL50F32S-20V21K600W-B1X0N | 18.0-43.2V | 20.0V CONSTANT | 21000 | 7.60 | 17330 | 40 | 3600 | 352.94 | 642 | 84 | 207 | 2180 | 213.73 |

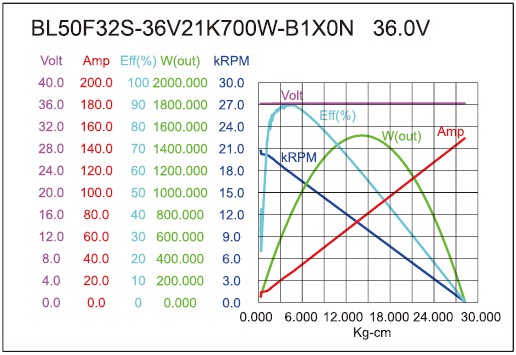

| BL50F32S-36V21K700W-B1X0N | 18.0-43.2V | 36.0V CONSTANT | 21000 | 2.50 | 18050 | 24 | 4000 | 392.16 | 740 | 91 | 150 | 2830 | 277.45 |

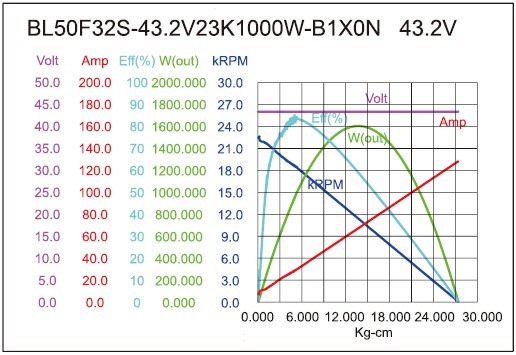

| BL50F32S-43.2V23K1000W-B1X0N | 18.0-43.2V | 43.2V CONSTANT | 23000 | 5.10 | 18760 | 28 | 4900 | 480.39 | 958 | 86 | 128 | 2740 | 268.63 |

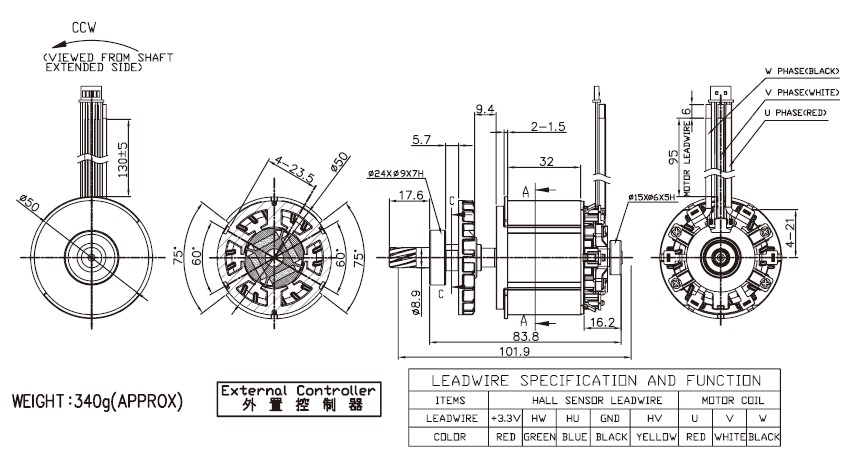

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
