H3SFN／H5FN有刷電機 /圓型鐵殼

用途：印表機 、電動工具、汽車噴水泵、吸塵器、電動按摩器

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF	CURRENT	TORQUE
	OPERATING RANGE	NOMINAL	rpm	A	rpm	A	g-cm	mN-m	W	%	A	g-cm	mN-m
H3SFN-6040-R	6.0-12.0	6.0V CONSTANT	8600	1.00	7300	5.90	326	31.96	24.82	70	38.69	2375	232.84

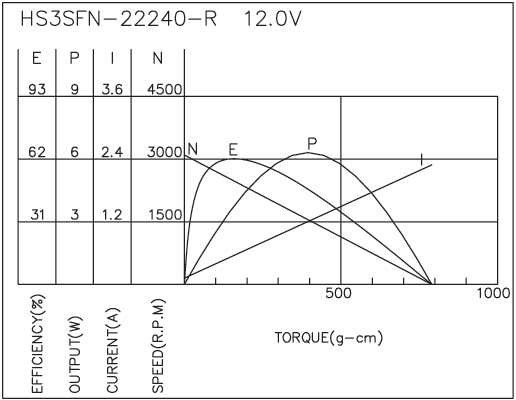

H3SFN-22240-R	6.0-24.0	12.0V CONSTANT	3100	0.12	2600	0.44	125	12.25	3.34	62	2.29	790	77.45

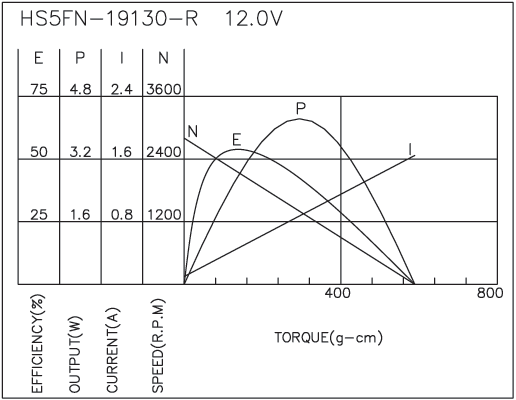

HP5FN-19130-R	12.0-24.0	12.0V CONSTANT	2800	0.10	2100	0.44	126	12.35	2.81	54	1.65	589	57.75

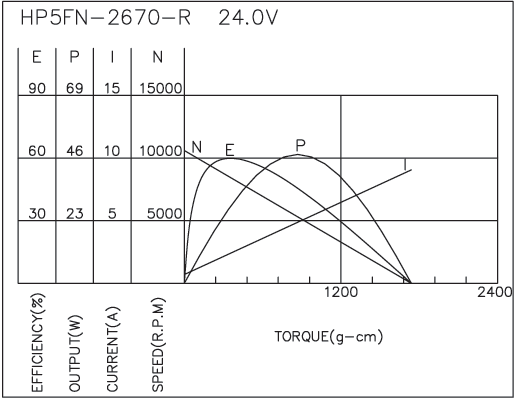

HP5FN-2670-R	12.0-24.0	24.0V CONSTANT	10600	0.70	8600	1.93	311	30.49	27.69	60	9.05	1739	170.49

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
