J3FN/J5FN有刷電機 /圓型鐵殼
用途： 印表機 、電動工具 、泵浦 、電動窗簾 、模型
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

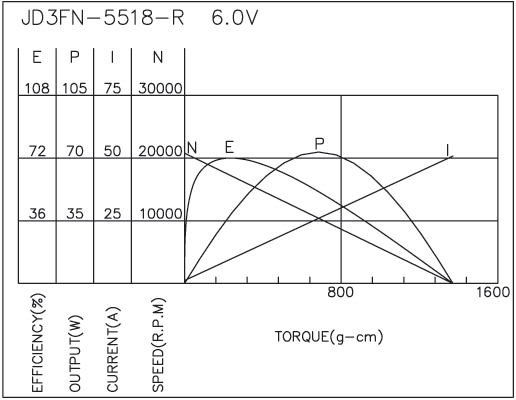

| JD3FN-5518-R | 3.6-6.0 | 6.0V CONSTANT | 20800 | 1.20 | 17600 | 8.76 | 209 | 20.49 | 37.98 | 72 | 50.84 | 1371 | 134.41 |

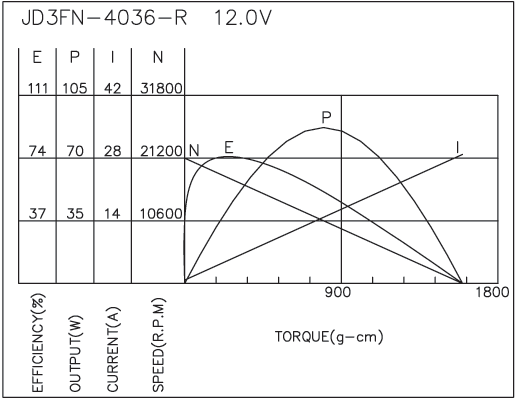

| JD3FN-4036-R | 6.0-12.0 | 12.0V CONSTANT | 21200 | 0.75 | 17986 | 4.77 | 289 | 28.33 | 42.22 | 75 | 28.77 | 1598 | 156.67 |

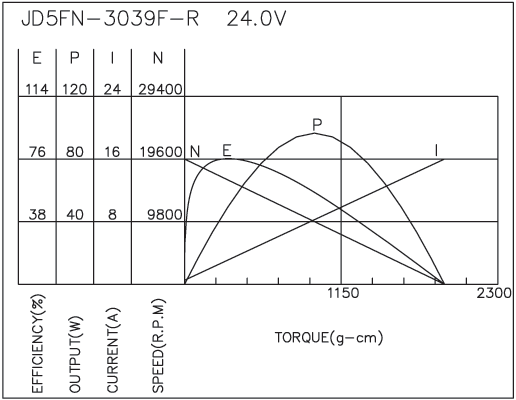

| JD5FN-3039F-R | 6.0-24.0 | 24.0V CONSTANT | 19600 | 0.52 | 16784 | 2.38 | 250 | 24.51 | 43.05 | 76 | 15.82 | 1909 | 187.16 |

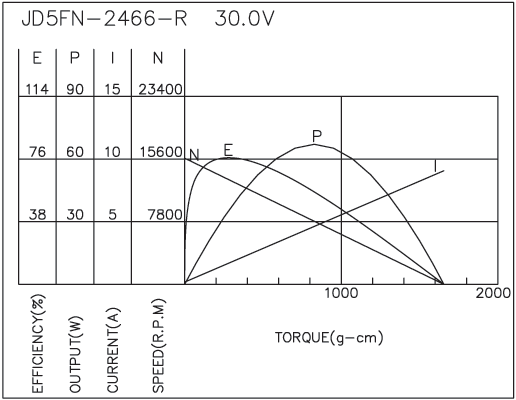

| JD5FN-2466-R | 12.0-36.0 | 30.0V CONSTANT | 15700 | 0.18 | 13900 | 1.12 | 173 | 16.96 | 24.89 | 77 | 9.07 | 1655 | 162.25 |

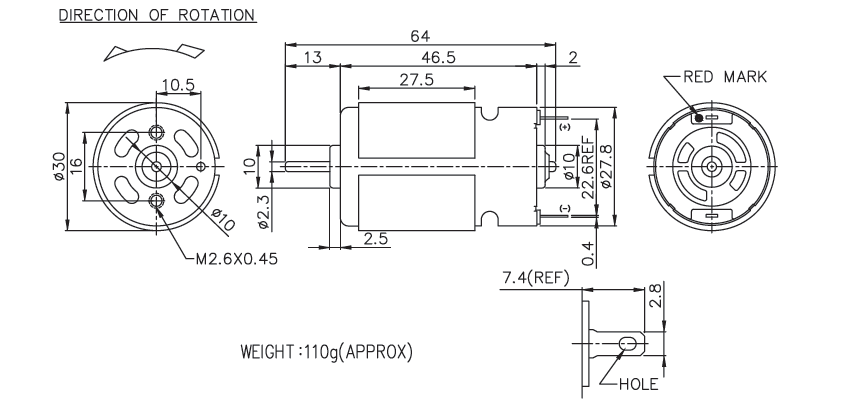

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
