L3FN/L5FN有刷電機 /圓型鐵殼
用途： 印表機 、電動工具 、泵浦 、影印機 、掃地機 、自動擦窗機
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

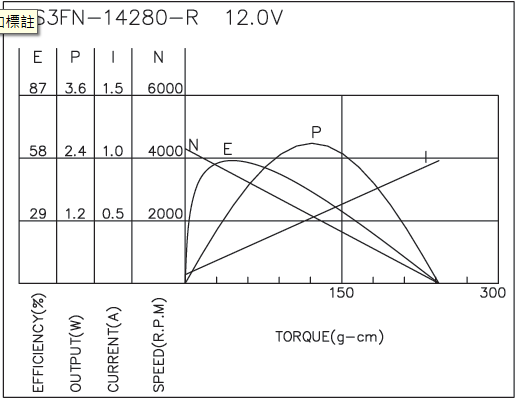

| LS3FN-14280-R | 6.0-24.0 | 12.0V CONSTANT | 4300 | 0.07 | 3400 | 0.23 | 42 | 4.12 | 1.49 | 57 | 0.98 | 243 | 23.82 |

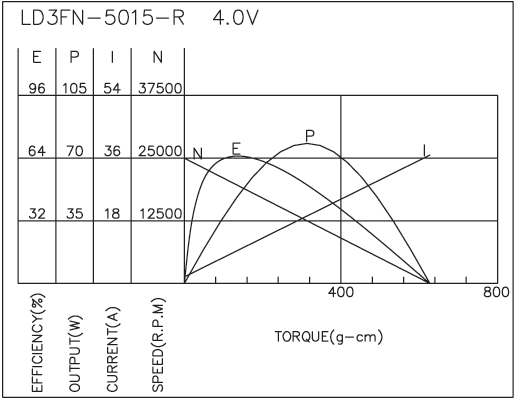

| LD3FN-5015-R | 2.4-4.8 | 4.0V CONSTANT | 25000 | 2.10 | 19900 | 10.77 | 135 | 13.24 | 27.69 | 65 | 41.90 | 627 | 61.47 |

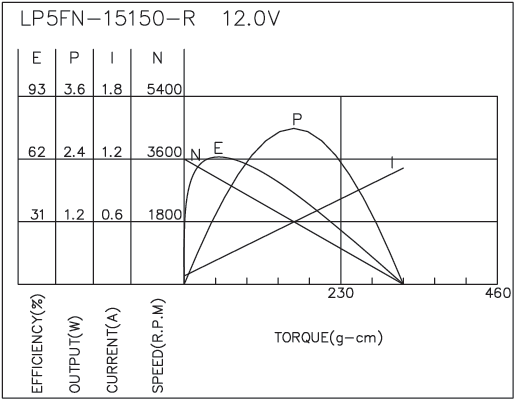

| LP5FN-15150-R | 9.0-24.0 | 12.0V CONSTANT | 3600 | 0.08 | 3078 | 0.23 | 51 | 5.00 | 1.63 | 63 | 1.11 | 322 | 31.57 |

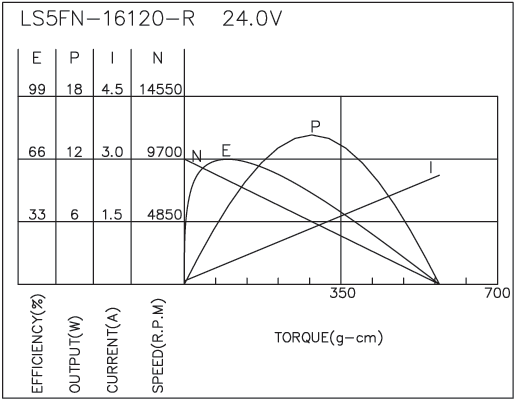

| LS5FN-16120-R | 12.0-32.0 | 24.0V CONSTANT | 9700 | 0.08 | 8200 | 0.46 | 82 | 8.04 | 7.01 | 66 | 2.61 | 570 | 55.88 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
