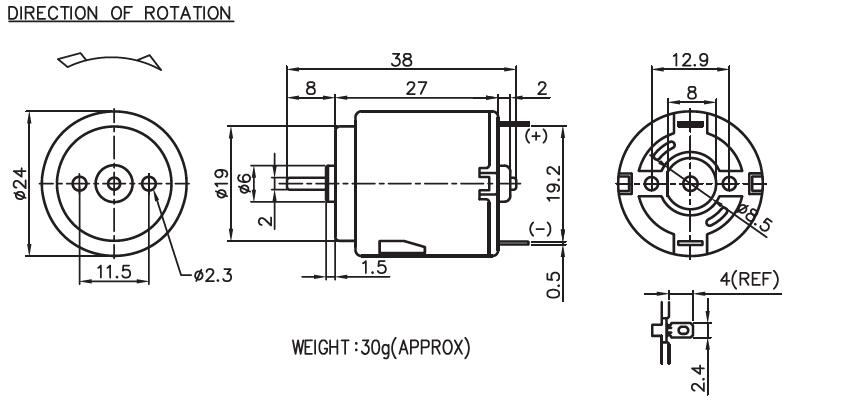

FC-260有刷電機 /圓型鐵殼
用途： 電動按摩器 、搖控車
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

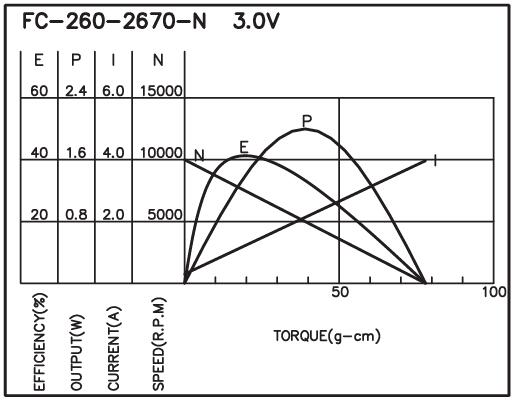

| FC-260-2670-N | 3.0-4.5 | 3.0V CONSTANT | 10000 | 0.30 | 7800 | 1.09 | 16.83 | 1.65 | 1.35 | 41 | 3.970 | 78 | 7.65 |

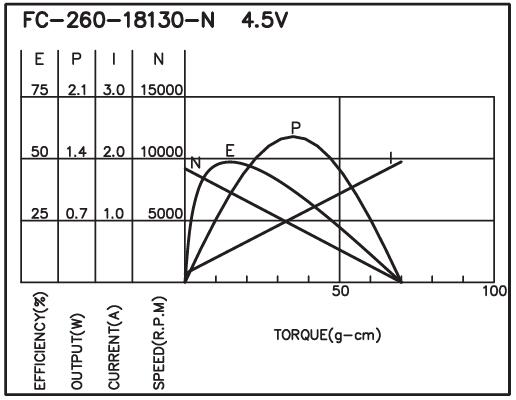

| FC-260-18130-N | 4.5-6.0 | 4.5V CONSTANT | 9200 | 0.14 | 7500 | 0.52 | 14.84 | 1.45 | 1.10 | 49 | 1.950 | 70 | 6.86 |
| FC-260-10350-N | 6.0-12.0 | 12.0V CONSTANT | 9500 | 0.06 | 7200 | 0.19 | 14.42 | 1.41 | 1.07 | 47 | 0.600 | 60 | 5.88 |

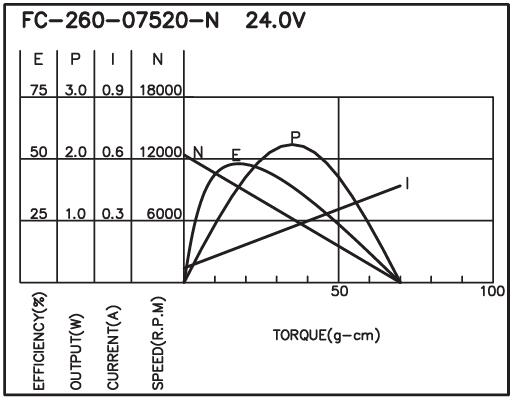

| FC-260-07520-N | 12.0-24.0 | 24.0V CONSTANT | 12400 | 0.07 | 9500 | 0.14 | 15.88 | 1.56 | 1.56 | 48 | 0.470 | 70 | 6.86 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
