MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF	CURRENT	TORQUE
	OPERATING RANGE	NOMINAL	rpm	A	rpm	A	g-cm	mN-m	W	%	A	g-cm	mN-m

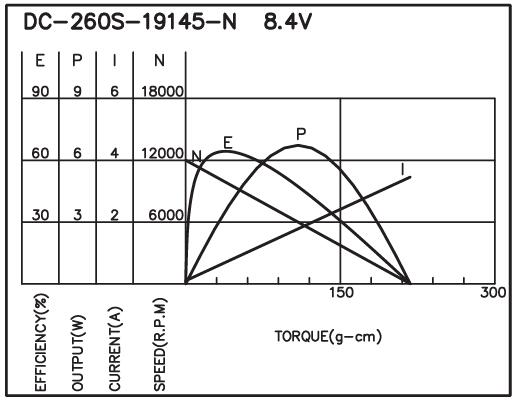

DC-260S-19145-N	6.0-12.0	8.4V CONSTANT	12000	0.13	9700	0.72	38	3.73	3.83	64	3.45	218	21.37

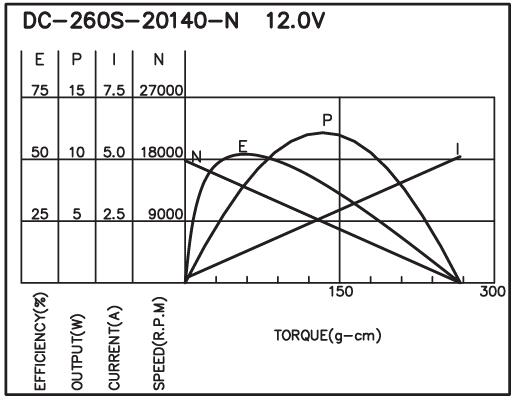

DC-260S-20140-N	6.0-12.0	12.0V CONSTANT	17800	0.18	13600	1.39	60	5.88	52	52	5.11	267	26.18

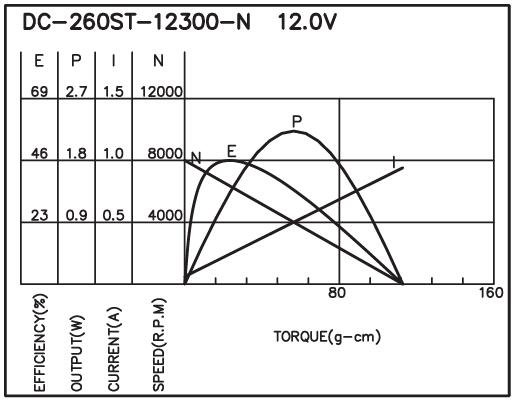

DC-260ST-12300-N	12.0-24.0	12.0V CONSTANT	8000	0.06	6100	0.26	23	2.25	1.46	46	0.94	113	11.08

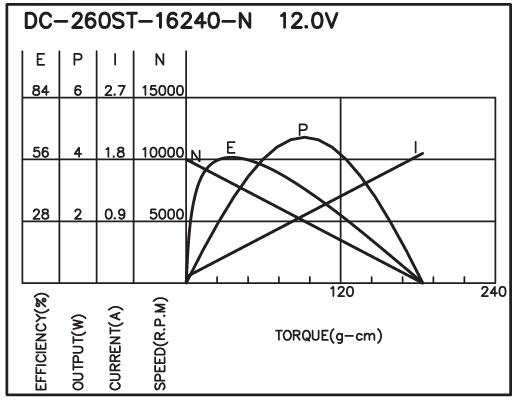

DC-260ST-16240-N	6.0-12.0	12.0V CONSTANT	10000	0.09	8100	0.43	35	3.43	2.94	57	1.89	184	18.04

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。

回上頁下載PDF

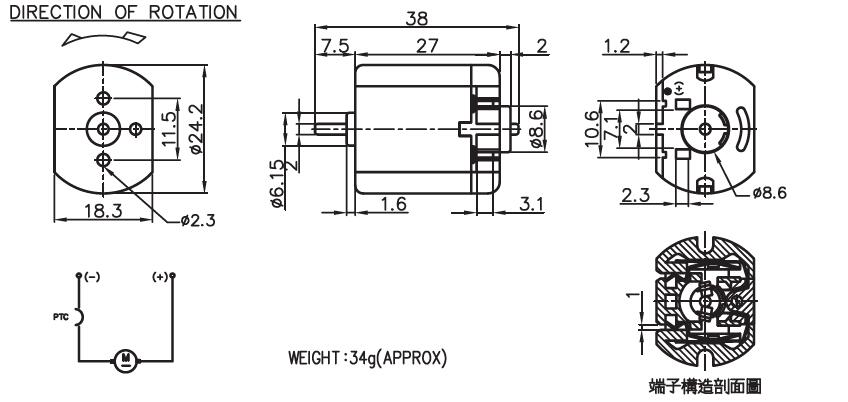

DC-260有刷電機 /方型鐵殼
