PC-260有刷電機 /方型鐵殼
用途： 后視鏡鏡面調整 、電動刮胡刀 、門鎖
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

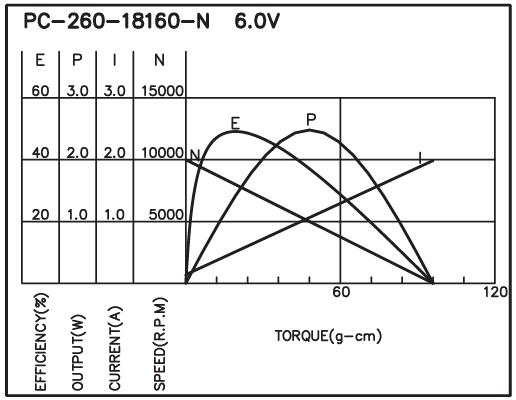

| PC-260-18160-N | 3.0-9.0 | 6.0V CONSTANT | 10000 | 0.14 | 7600 | 0.49 | 18 | 1.76 | 1.45 | 49 | 1.98 | 96 | 9.41 |

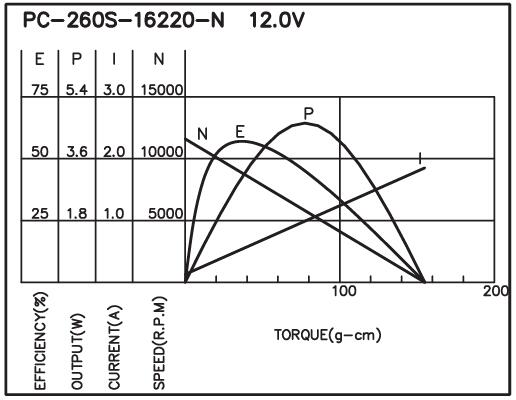

| PC-260S-16220-N | 6.0-18.0 | 12.0V CONSTANT | 11600 | 0.13 | 9000 | 0.45 | 32 | 3.18 | 3.00 | 57 | 1.85 | 155 | 15.16 |

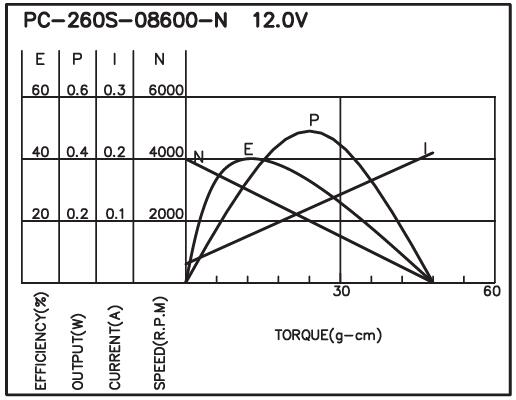

| PC-260S-08600-N | 6.0-24.0 | 12.0V CONSTANT | 4000 | 0.03 | 2800 | 0.08 | 12 | 1.18 | 0.36 | 40 | 0.21 | 48 | 4.71 |

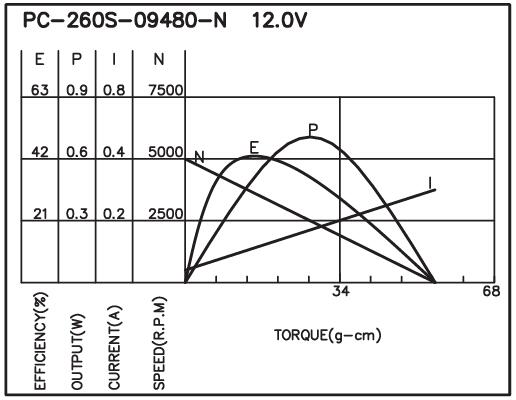

| PC-260S-09480-N | 6.0-24.0 | 12.0V CONSTANT4 | 5000 | 0.04 | 3500 | 0.11 | 15 | 1.47 | 0.55 | 43 | 0.30 | 55 | 5.39 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
