755有刷電機 /圓型鐵殼
用途： 電動工具 、影印機 、電動按摩器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

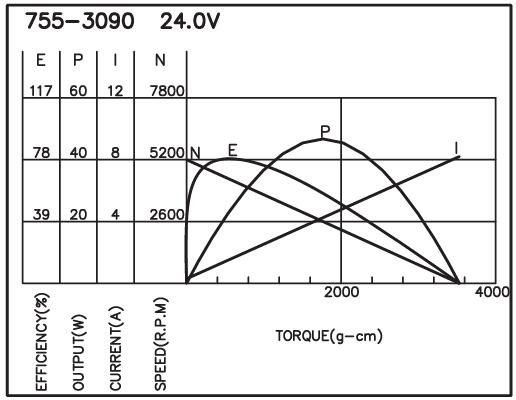

| 755-3090 | 18.0-36.0 | 24.0V CONSTANT | 5200 | 0.30 | 4715 | 0.94 | 363 | 35.59 | 17.58 | 78 | 8.20 | 3530 | 346.08 |

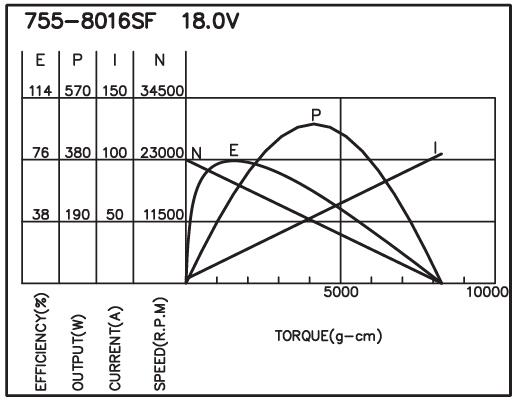

| 755-8016F | 9.6-20.0 | 18.0V CONSTANT | 23000 | 3.50 | 19569 | 20.21 | 1346 | 131.96 | 270.50 | 75 | 104.77 | 8276 | 811.37 |

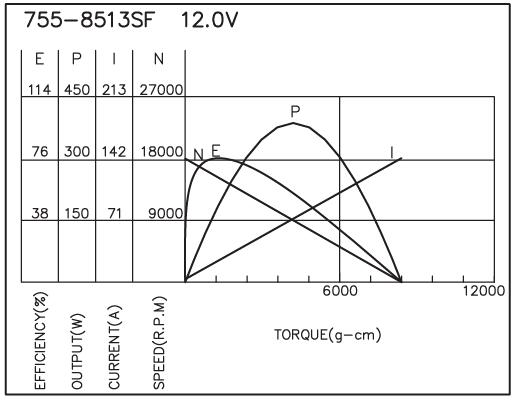

| 755-8513SF | 6.0-18.0 | 12.0V CONSTANT | 18000 | 3.50 | 15748 | 16.68 | 876 | 85.88 | 141.67 | 75 | 142.48 | 8396 | 823.14 |

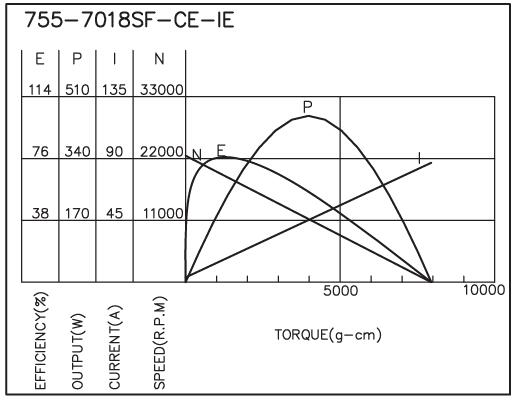

| 755-7018SF-CE-IE | 15.0-24.0 | 19.5V CONSTANT | 22500 | 3.50 | 19011 | 14.81 | 1107 | 108.53 | 216.13 | 77 | 86.93 | 7950 | 779.41 |
馬達的出軸長度及性能參數(shù)，EMC 對策可依客人要求做調(diào)整，詳情可詢問相關(guān)業(yè)務人員。
